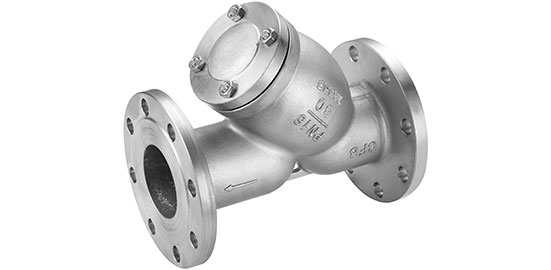

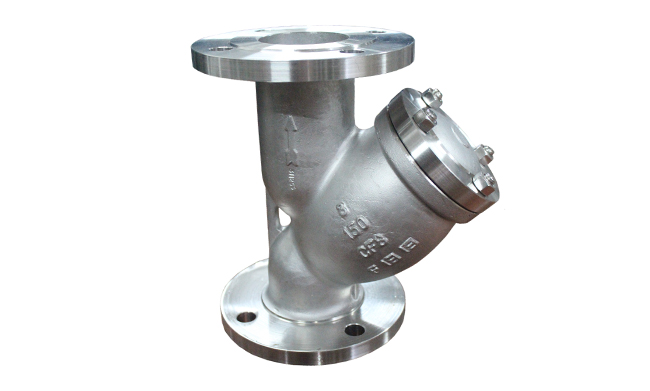

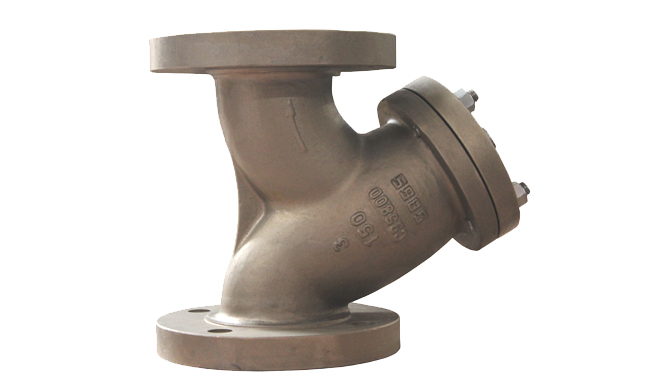

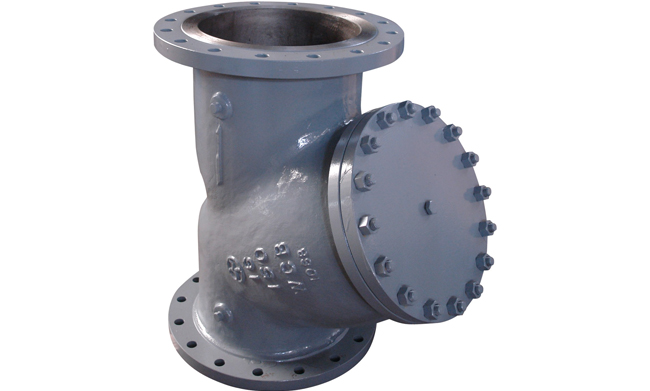

Y Type type Strainer

Strainer is the medium of pipe system of a device, usually installed in a reducing valve, relief valve and the inlet water valve or other equipment, used to remove the medium quality, in order to protect the valve and the equipment of normal use. Filter has the advanced structure, small resistance and easy drainage, etc.
Design Feature
  • Full bore
  • Bolted cover
  • Compact design
  • High filtration accuracy
  • Faster filter speed
  • Adjustable
  • Online repair
Design Standard
  • Design: ASME B16.34
  • Face to face: ASME B16.10
  • End connection: ASME: B16.5
  • Test: API598
Technical Specification
  • Size: 2”~20”
  • Class: 150#~600#
  • Connection: flange/butt weld
  • Temperature: -46°C to +450°C
  • Application: water / pipeline system
Material Option
  • Body: Carbon steel(WCB,LCB) / Stainlesssteel(CF8,CF8M)
  • Strainer: SS304 / SS316 / INCONEL
