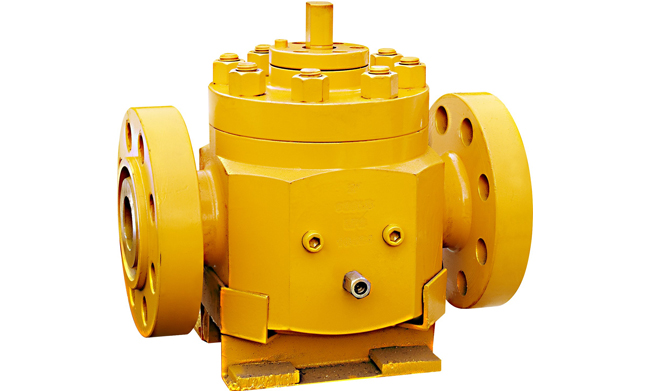

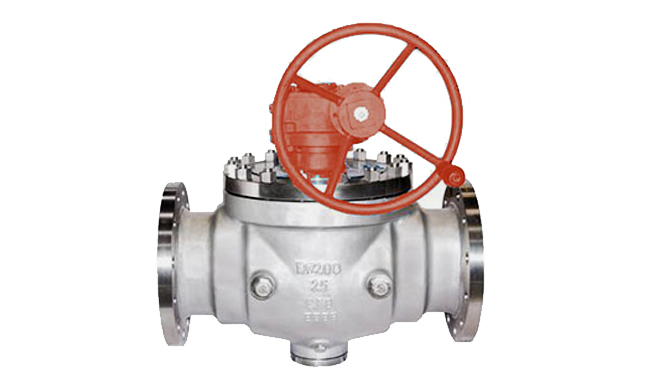

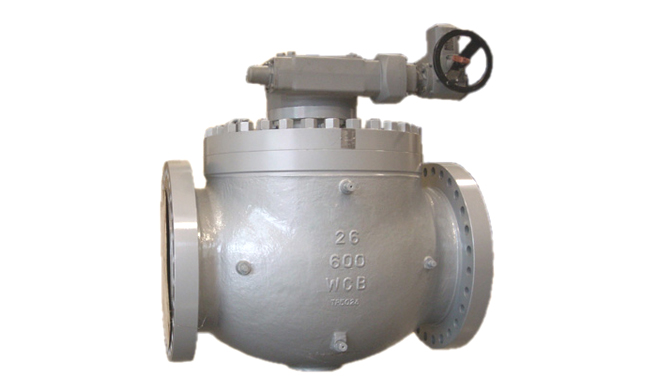

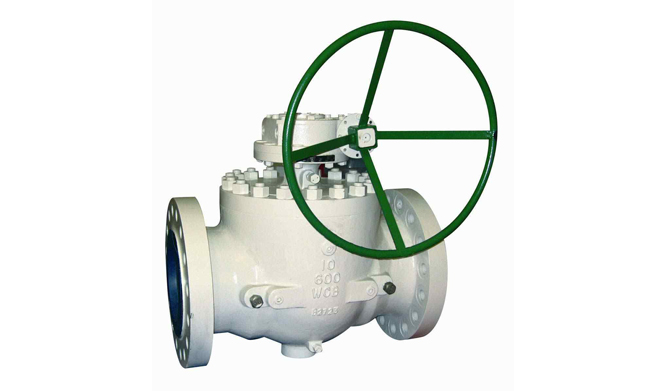

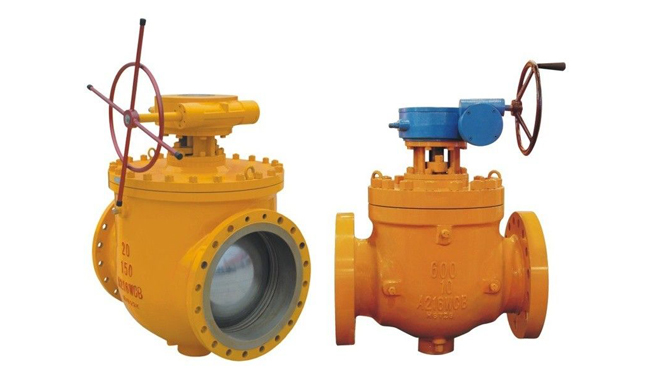

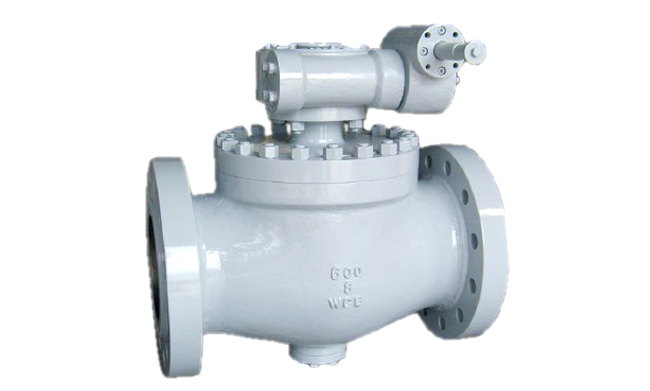

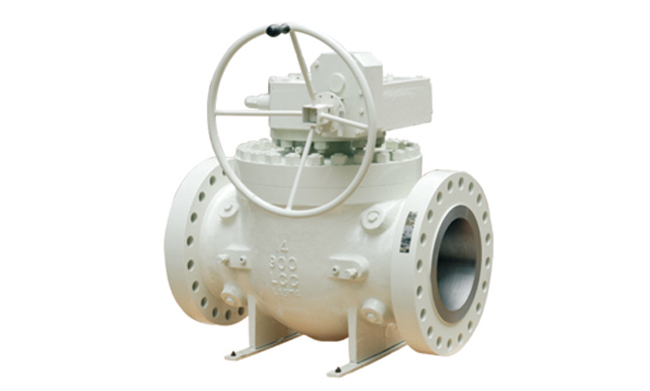

Top Entry Ball Valve

Top entry type ball valve in the pipeline is simple and rapid demolition, maintenance convenient. When the valve in the pipeline fails to repair, do not have to remove the valve from the pipeline, just remove the flange bolts and nuts, the valve cover and stem assembly removed from the valve body, and then remove the ball and valve seat assembly. You can repair the ball and valve seat. This service saves time and minimizes production losses.
Design Feature
  • On-site maintenance pocket overlay
  • Soft or Metal sealing
  • Integral structure
  • Single piston effect
  • Double block and bleed
  • Extended stem design
  • Anti-static design
  • Fire safe design
  • Zero leakage
Design Standard
  • Design: API 6D / API608 / B16.34
  • Face to face: API6D / ASME16.10
  • Flange end: ASME B16.5 / ASME B16.47 / EN1092-1 / GOST 12815 /
    MSS-SP44
  • Butt-welding end: ASME B16.25
  • Test: API598 / API6D
  • Fire safe: API607 / API6FA
Technical Specification
  • Size: 2”~48”
  • Class: 150Lb~1500Lb
  • Connection: Double flange / Butt weld
  • Operation: Worm Gear / Pneumatic actuator / Electric actuator
  • Temperature: -60°C to +450°C
  • Application: Oil and gas transmission  /   Chemical industry  / Air separation
Material Option
  • Body: Carbon steel(WCB,LCB,A105,LF2) /
    Stainless steel(CF8,CF8M,F304,F316) /
    Duplex stainless steel(4A,5A,6A,F51,F53)
  • Ball: A105+ENP / F6A / F304 / F316 / F53
  • Stem:  A105+ENP / F6A / F304 / F316 / F53
  • Soft seat: PTFE / RPTFE / PPL / PEEK / Nylon / Devlon
