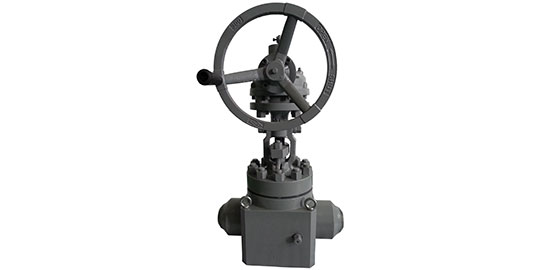

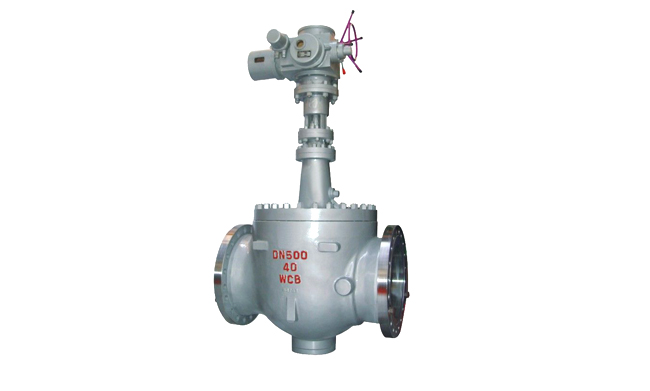

Orbit Ball Valve

The orbit ball valve and the gate valve belong to the same type of valve, the difference is in its closing piece is the ball, the ball revolves around the valve body center line to achieve opens, closes a kind of valve. The valve in the pipeline is mainly used to do cutting, distribution and change the direction of flow of media.
Design Feature
  • Top entry
  • Unilateral seal
  • Forced seal
  • Zero leakage
  • Anti-static design
  • Fire safe design
Design Standard
  • Design: API 6D / ASME B16.34
  • Face to face: API6D / ASME B16.10
  • Flange end: ASME B16.5 / ASME B16.47
  • Butt-welding end: ASME B16.25
  • Test: API598 / API6D
  • Fire safe: API607 / API6FA
Technical Specification
  • Size: 2”~32”
  • Class: 150Lb~2500Lb
  • Connection: Double flange / Butt weld
  • Operation: Hand wheel / bevel gear
  • Temperature: -60°C to +550°C
  • Application:Petrochemical / hydrocracking
Material Option
  • Body: Carbon steel(WCB,LCB,A105,LF2)
  • Ball: WCB+STL / LCB+STL / CF8+STL / CF8M+STL
  • Stem: 17-4PH
  • Soft seat: RPTFE / PEEK / Nylon / Devlon
  • Metal Seat:  CF8+STL / CF8M+STL
