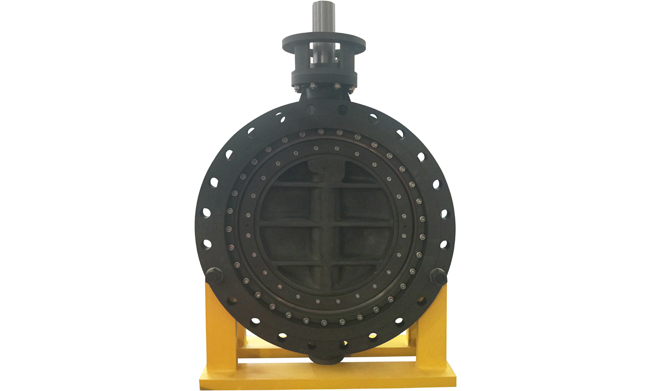

Bi-directional Seal Triple Offset Butterfly Valve

The Tipvalve Floating Seat Bi-directional Seal Triple Offset Valves valve design is recommended for industrial applications requiring reliable zero-leakage, bi-directional shut-off in harsh conditions of critical processes, steam isolation, and temperature extremes;
The Tipvalve Floating Seat Bi-directional Seal Triple Offset Valves is an affordable solution, particularly in larger diameter installations, that requires less structural support to ensure bubble tight shut-off. The result is a virtual zero leakage shut-off even in highair pressure, high-temperature, bidirectional pressure applications. Due to their quarter-turn movement for opening and closing, the valves are easy to automate and they can fulfill a quick closing time, which is often required in safety applications.
  • Design Feature


    • Frictionless

    • Super long usage life

    • Bi-directional sealing

    • zero leakage in air pressure

    • Renewable sealing ring

    • Renewable seat

    • Blowout proof stem

    • Low emission packing

    • Fire safe design

  • Design Standard


    • Design: API 609

    • Face to face: API609 / ISO5752-20 / ISO5752-13 / DIN F4

    • Flange end: ASME B16.5 / ASME B16.47 / EN1092-1 / GOST 12815 /
      MSS-SP44

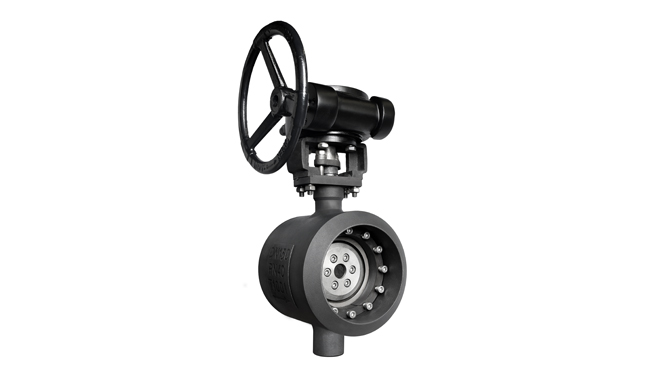

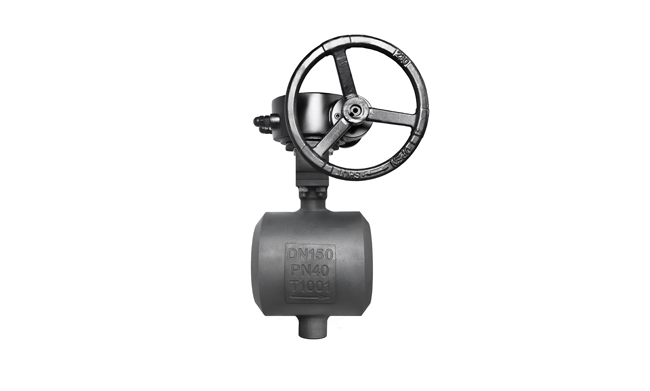

    • Butt-welding end: ASME B16.25

    • Test: API598

    • Fire safe: API607 / API6FA

  • Technical Specification


    • Size: 4”~64”(DN100~DN1600)

    • Class: 150Lb~600Lb(PN10,PN16,PN25,PN40,PN64,PN100)

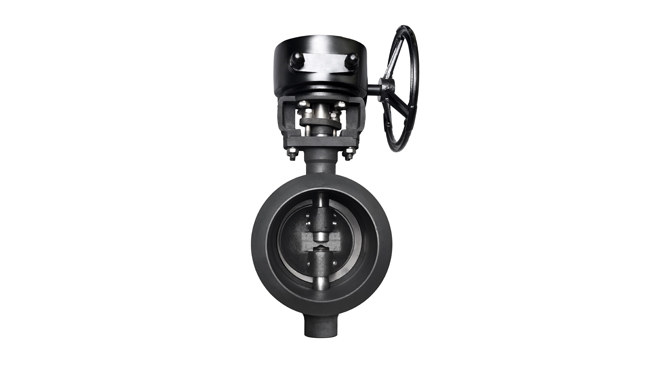

    • Connection: Double flange / Butt weld / Lug / Wafer

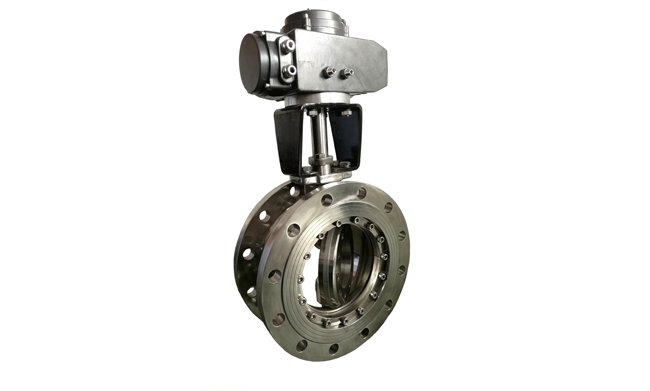

    • Operation: Worm Gear / Pneumatic actuator / Electric actuator

    • Temperature: -60°C to +550°C

    • Application: Direct heating / Iron and steel smelting / Circulating cooling water / Power plants

  • Material Option


    • Body&Disc: Carbon steel(WCB,LCB,WC6,WC9,C5) /
      Stainless steel(CF8,CF8M,CF3,CF3M) /
      Duplex stainless steel(4A,5A,6A) /
      Hastelloy alloy(N-12MV,CW-12MW,CW-2M) /
      Inconel alloy(CY-40,CW-6MC) /
      Monel alloy(M35-1) /
      Aluminium bronze alloy(C95400,C95500,C95800,AB2C)
    • Stem: SS420 / 17-4PH / F53 / XM-19 / Monel-K500 / Inconel-625 /
      Hastelloy-276

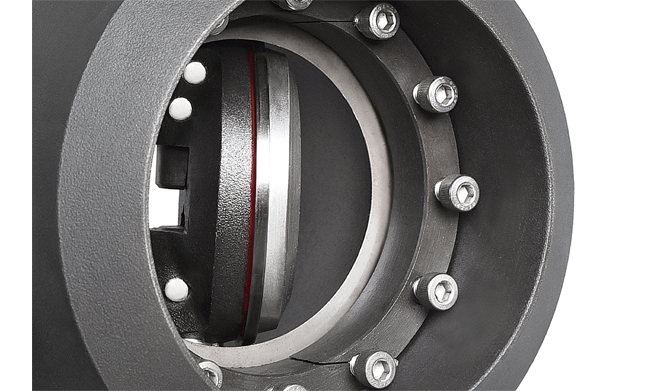

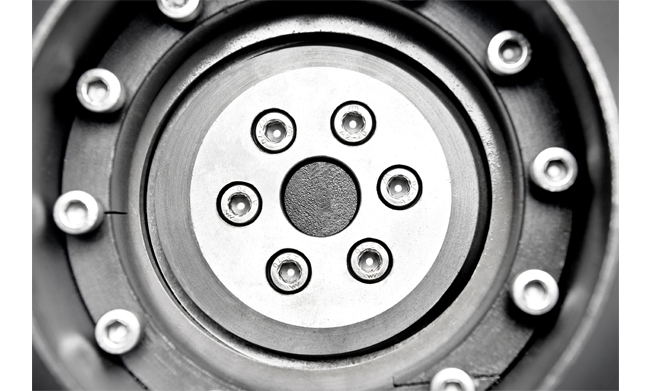

    • Disc Sealing: Laminated sealing(SS316+graphite,SS316+PTFE) /
      All metal(F316 harding coating)
    • Body Seat: F6a harden /F316 harden / F316+STL surfacing
