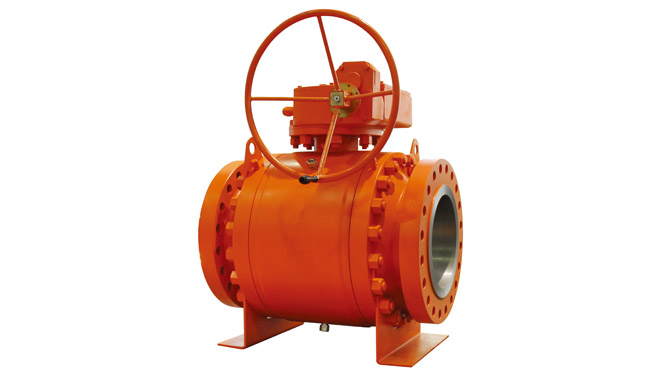

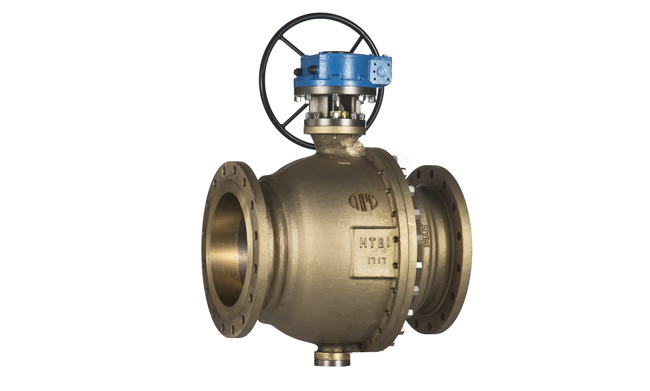

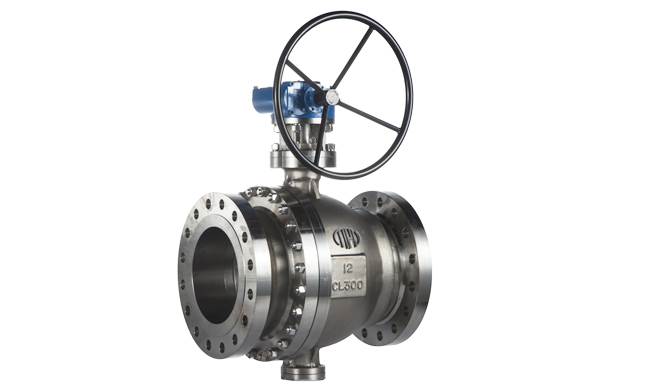

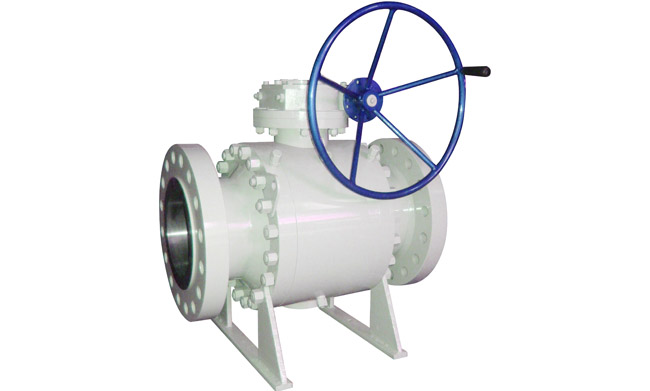

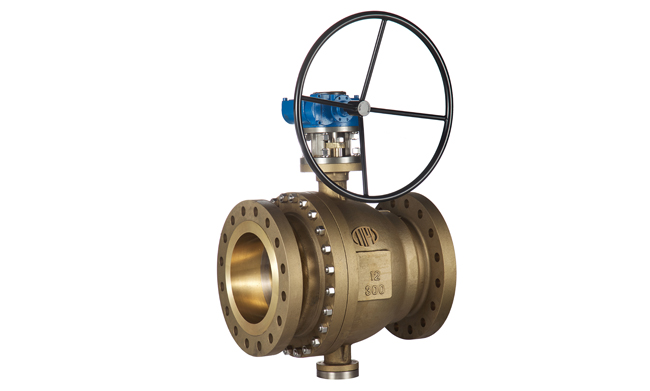

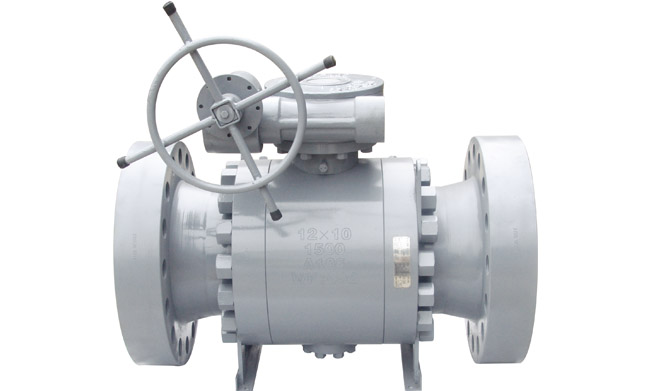

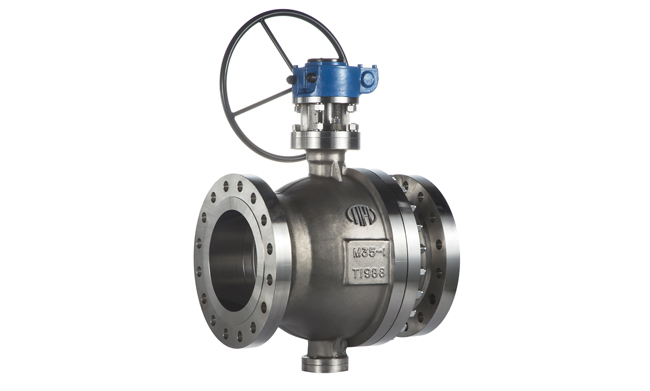

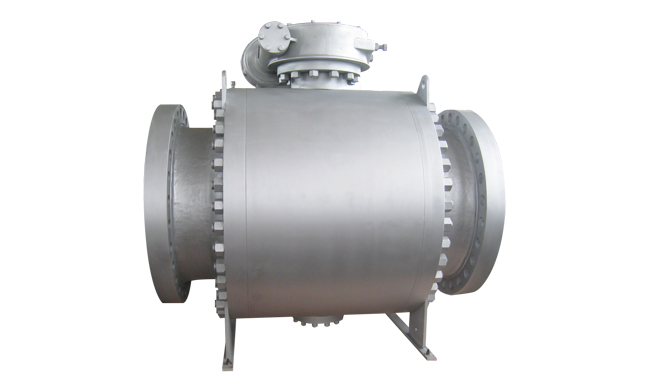

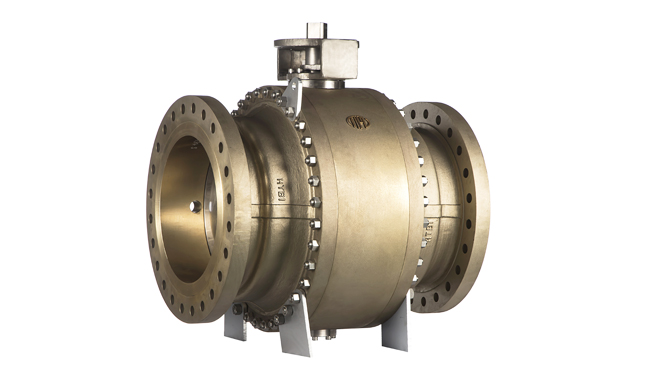

Trunnion Mounted Ball Valve

Trunnion mounted ball valve is a new generation of high-performance ball valve, suitable for long distance pipelines and general industrial pipelines. Designation takes full consideration to its strength, safety, resistant to harsh environments, so it can apply to a variety of corrosive and non-corrosive media
Design Feature
  • Side entry
  • Full bore / Reduce bore
  • Double block and bleed
  • Blowout-proof stem
  • Anti-static design
  • Fire safe design
  • Sealant injection at seat and stem
  • Zero leakage
Design Standard
  • Design: API 6D / API608 / ISO 17292
  • Face to face: API6D / ASME16.10
  • Flange end: ASME B16.5 / ASME B16.47 / EN1092-1 / GOST 12815 /
    MSS-SP44
  • Butt-welding end: ASME B16.25
  • Test: API598 / API6D
  • Fire safe: API607 / API6FA
Technical Specification
  • Size: 2”~56”
  • Class: 150Lb~2500Lb
  • Connection: Double flange / Butt weld

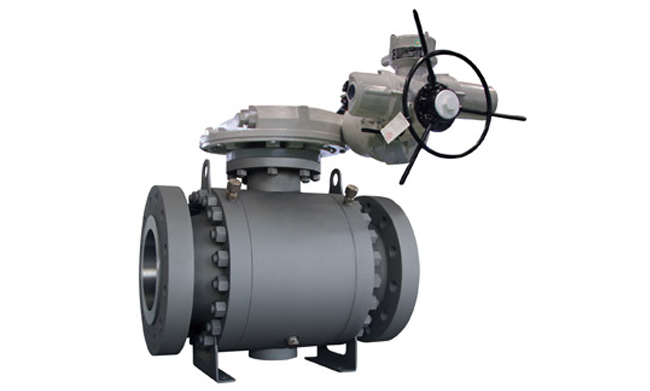

  • Operation: Manual /  Worm Gear / Pneumatic actuator / Electric  actuator
  • Temperature: Soft seat-60°C to +180°C,Metal seat-90°C to +450°C
  • Application: Oil and gas transmission /
    Petroleum refining /
    Chemical industry /
    Coal chemical industry /
    Air separation /
    Oxygen delivery
Material Option
  • Body: Carbon steel(WCB,LCB,WC6,WC9,C5,A105,LF2) /
    Stainless steel(CF8,CF8M,CF3,CF3M,F304,F316,F304L,F316L) /
    Duplex stainless steel(4A,5A,6A,F51,F53) /
    Hastelloy alloy(N-12MV,CW-12MW,CW-2M) /
    Inconel alloy(CY-40,CW-6MC) /
    Monel alloy(M35-1) /
    Aluminium bronze alloy(C95400,C95500,C95800,AB2C)
  • Stem:  A105+ENP / F6A / F304 / F316 / F53 / K500
  • Soft seat: PTFE / RPTFE / PPL / PEEK / Nylon / Devlon
