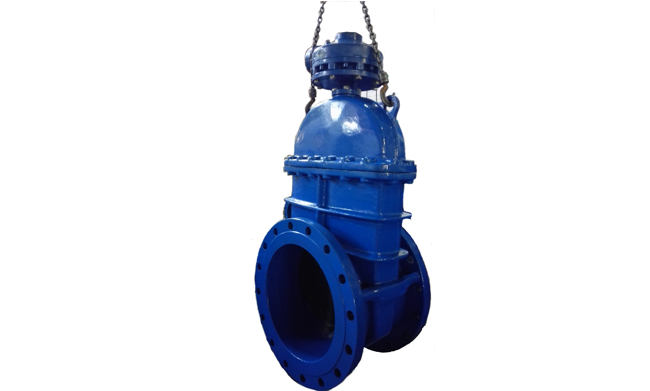

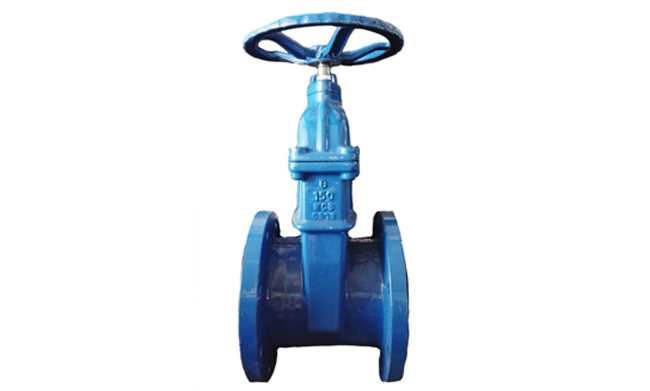

Resilient Wedge Gate Valves

The combination of evolving technology and changing market influences presents the unique opportunity once again for TIPVALVE to be a leader in modern valve design. TIP Valve’s Resilient Seated Gate Valve line meets or exceeds AWWA C509/AWWA C515. Our valves have a durable fusion-bonded epoxy coating both inside and out that complies with ANSI/AWWA C550 and provides unexcelled abrasion and corrosion protection. Making absolutely no compromise in materials or workmanship, we stand behind our resilient-seated gate vales with a 10-year limited warranty. The choice is clear for those who demand the best!
Design Feature
  • Replaceable disc
  • DIsc line with EPDM
  • Resilient-seated gate valve
  • Epoxy paint body&disc
  • Water supply service
Design Standard
  • Design: AWWA C509 / AWWA C515
  • Face to face: ASME16.10
  • Flange end: ASME B16.5 / ASME B16.47
  • Test: API598
Technical Specification
  • Size: 2”~48”(DN50~DN1200)
  • Class: 150Lb(PN10,PN16,150PSI,165PSI,225PSI)
  • Connection: Double flange
  • Operation: Handwheel / Bevel gear box
  • Temperature: -20°C to +80°C
  • Application: Water / Sea water
Material Option
  • Body: DI / WCB
  • Disc: DI+EPDM / WCB+EPDM
  • Stem: F6a / SS420
