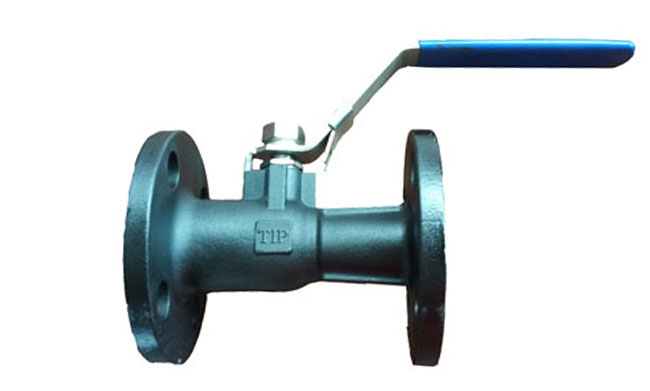

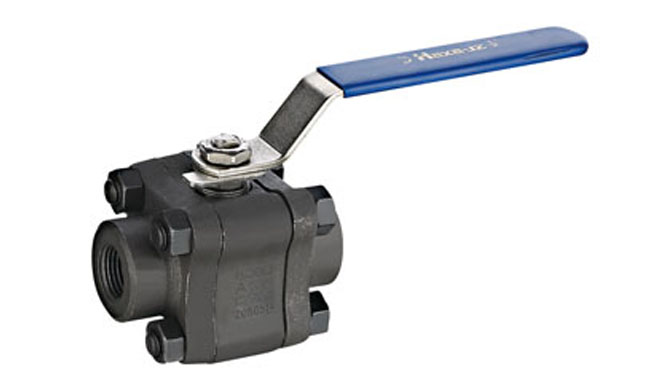

Floating ball valve has simple structure and good sealing. However, the ball delivers all the load of the working medium to the exit seal ring, so is necessary to consider whether the ring material can withstand the load of media when working or not. If not, impacted by high pressure, the ball may be shifted. So this kind of structure is generally used for low and medium pressure valve.

Design Feature

• Soft seat
• Full bore/ reduce bore
• Side entry
• Antic static design
• Fire safe design
• Zero leakage
• Low emission control

Design Standard

• Design: API608 / BS 5351
• Face to face: API6D / ASME16.10
• Flange end: ASME B16.5 / ASME B16.47
• Butt-welding end: ASME B16.25
• Test: API598
• Fire safe: API607 / API6FA

Technical Specification

• Size: 1/2”~10”
• Class: 150Lb~600Lb
• Connection: Double flange / Butt weld / sock weld
• Operation: Manual /  Worm Gear / Pneumatic actuator / Electric  actuator
• Temperature: Soft seat-60°C to +180°C,Metal seat-196°C to +450°C
• Application: Petroleum refining / Chemical / Water / Power

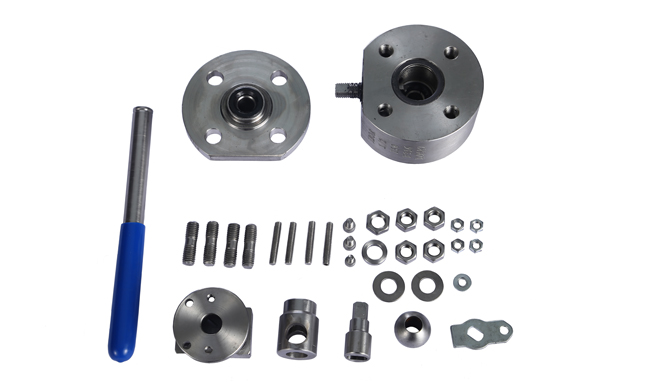

Material Option

• Body: Carbon steel(WCB,LCB,WC6,WC9,C5,A105,LF2) /

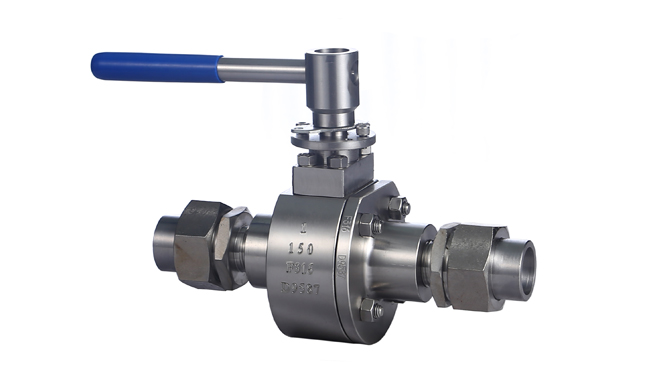

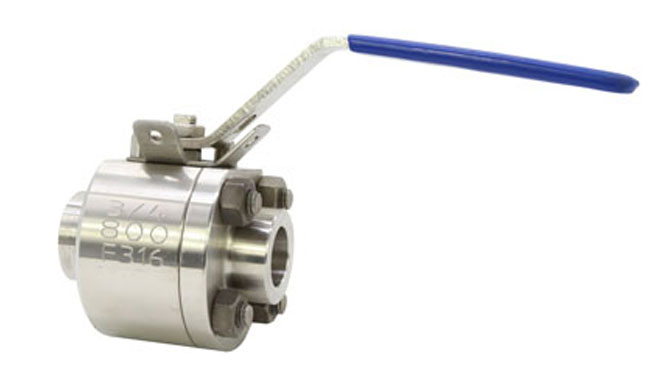

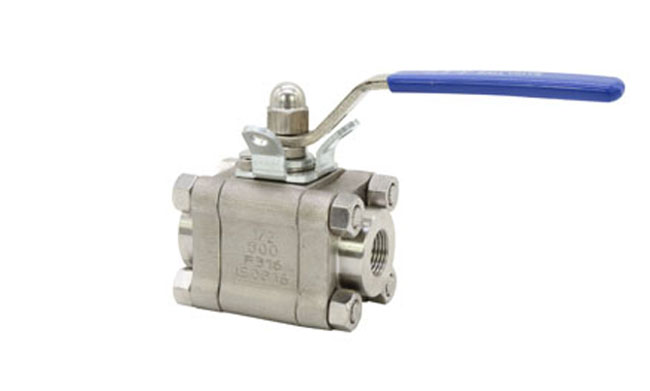

  Stainless steel(CF8,CF8M,CF3,CF3M,F304,F316,F304L,F316L) /
  Duplex stainless steel(4A,5A,6A,F51,F53) /
  Hastelloy alloy(N-12MV,CW-12MW,CW-2M) /
  Inconel alloy(CY-40,CW-6MC) /
  Monel alloy(M35-1) /

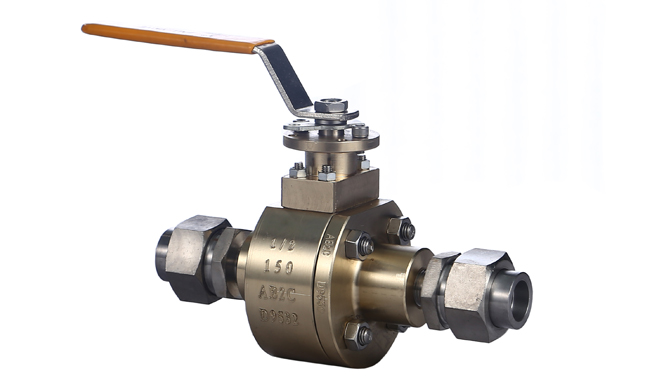

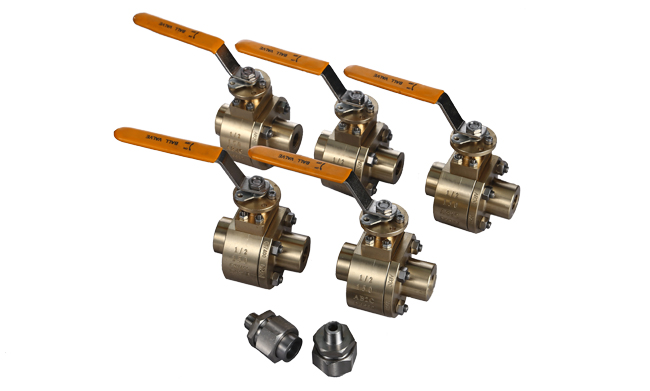

  Aluminium bronze alloy(C95400,C95500,C95800,AB2C)
• Ball: A105+ENP / LF2+ENP / F6A / F304 / F316 / F53 / K500
• Stem:  A105+ENP / F6A / F304 / F316 / F53 / K500
• Soft seat: PTFE / RPTFE / PPL / PEEK / Nylon / Devlon
