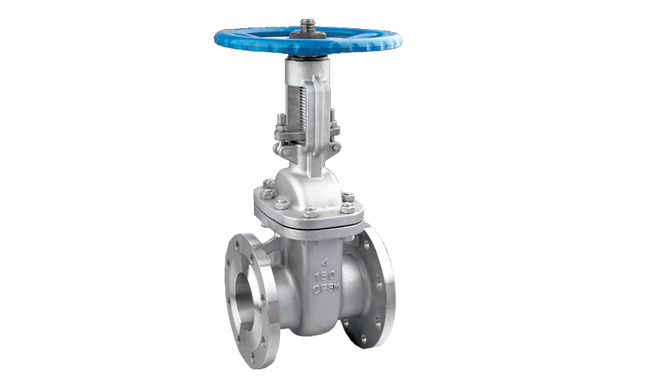

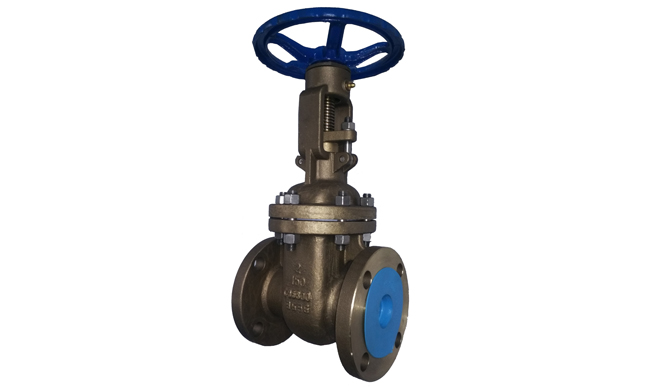

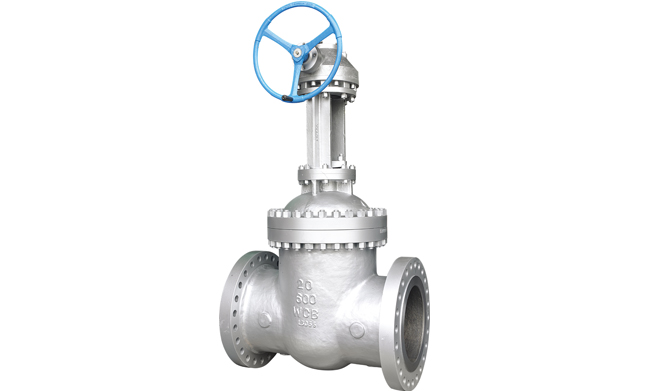

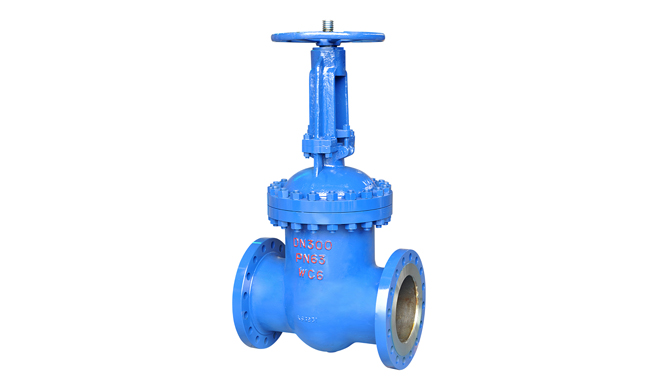

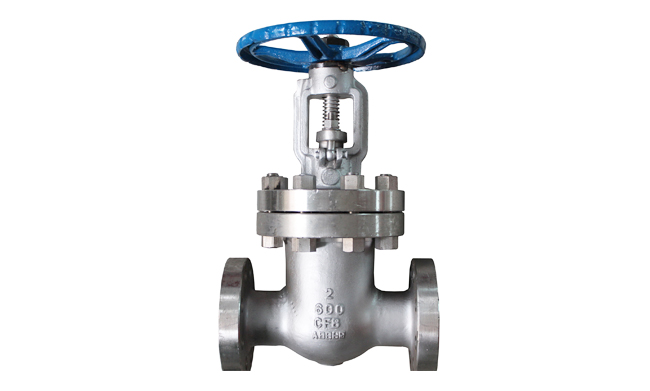

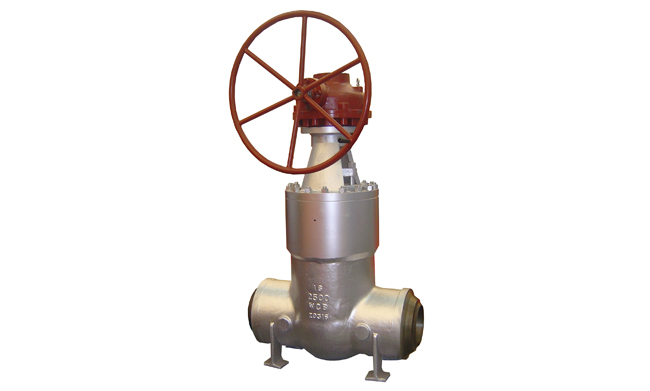

Wedge gate valves are divided into rising stem gate valves and non-rising stem gate, wedge gate valve and wedge gate valve. The open-close part of wedge gate valve is disc, so it can only be fully open and close and can’t be used to adjust and throttle. Wedge gate valve, which are widely used in electric power, petroleum, chemical industry, metallurgy, mining, sewage treatment and other industrial fields, especially in the power plant ash play a huge role in coal preparation equipment.
Design Feature
  • Flexible wedge / Solid wedge
  • Rising stem/non rising stem
  • Bolted bonnet
  • Anti blow-out stem
  • Cover connect with bolt / Pressure Seal Bonnet
  • Zero leakage
Design Standard
  • Design: API600 / ASME B16.34
  • Face to face: API6D / ASME16.10
  • Flange end: ASME B16.5 / ASME B16.47 / EN1092-2 / GOST 12815 /
    MSS-SP44

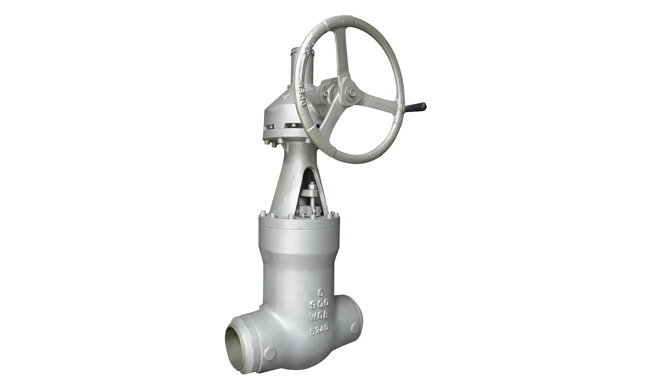

  • Butt-welding end: ASME B16.25
  • Test: API598
Technical Specification
  • Size: 4”~64”(DN100~DN1600)”
  • Class:150Lb~2500Lb(PN10,PN16,PN25,PN40,PN64,PN100,PN160,PN250)
  • Connection: Double flange /  Butt weld

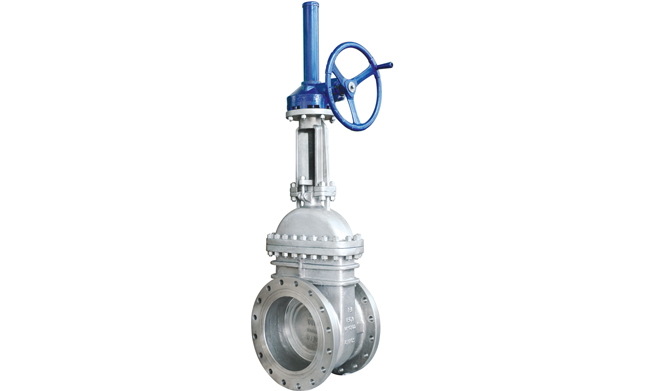

  • Operation:Handwheel / Bevel gear box / Electric actuator
  • Temperature: -60°C to +450°C
  • Application: Power / Petroleum / Chemical industry / Metallurgy / Mning
Material Option
  • Body: Carbon steel(WCB,LCB,WC6,WC9,C5) /
    Stainless steel(CF8,CF8M,CF3,CF3M) /
    Duplex stainless steel(4A,5A,6A) /
    Hastelloy alloy(N-12MV,CW-12MW,CW-2M) /
    Inconel alloy(CY-40,CW-6MC) /
    Monel alloy(M35-1) /

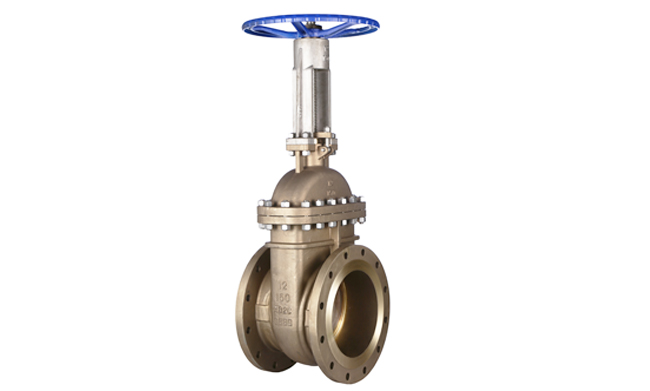

    Aluminium bronze alloy(C95400,C95500,C95800,AB2C)
  • Disc: Carbon steel(WCB+13Cr,WCB+STL,LCB+STL,WC6+STL,WC9+STL,C5+STL)
    Stainless steel(CF8,CF8M,CF3,CF3M) /
    Duplex stainless steel(4A,5A,6A) /
    Hastelloy alloy(N-12MV,CW-12MW,CW-2M) /
    Inconel alloy(CY-40,CW-6MC) /
    Monel alloy(M35-1) /
    Aluminium bronze alloy(C95400,C95500,C95800,AB2C)
  • Seat: A105+13Cr,A105+STL,LF2+STL,F5+STL,Integral seat
  • Stem: SS420 / 17-4PH / F53 / XM-19 / Monel-K500 / Inconel-625 /
    Hastelloy-276
